10-15Kap VPSA Oxygen Plant 10-5000 Nm3/Hr For Medical Use

10-15Kap VPSA Oxygen Plant 10-5000 Nm3/Hr For Medical Use
10-15Kap VPSA Oxygen Plant 10-5000 Nm3/Hr For Medical Use 10-15Kap VPSA Oxygen Plant 10-5000 Nm3/Hr For Medical Use 10-15Kap VPSA Oxygen Plant 10-5000 Nm3/Hr For Medical Use 10-15Kap VPSA Oxygen Plant 10-5000 Nm3/Hr For Medical Use

Großes Bild :  10-15Kap VPSA Oxygen Plant 10-5000 Nm3/Hr For Medical Use

Produktdetails:
Herkunftsort: China
Markenname: GNEE
Zertifizierung: SGS
Zahlung und Versand AGB:
Min Bestellmenge: ≥1Sets
Lieferzeit: Transitzeit: Est. 17-24 Tage
Zahlungsbedingungen: Moneygram, Western Union, T/T, D/P, D/A, L/C.
Versorgungsmaterial-Fähigkeit: 25 jeden Monat
Kontakt

10-15Kap VPSA Oxygen Plant 10-5000 Nm3/Hr For Medical Use

Beschreibung
Stichwort: SAUERSTOFF-ANLAGE Technologie: Vakuumdruckschwung Adsorption (VPSA)
Ausgangsdruck: 10-15KAP oder als Anforderung des Benutzers Anwendung: Sauerstoffproduktion
Auslassdruck: ≥1barg Taupunkt: ≤-40 ° C.
Druck: 0.2-0.6 Mpa Verfahren: VPSA
Betriebstemperatur: 5-45 ° C. Kraft betreiben: 1 kW
Kapazität: 10-5000 nm3/h Durchflussrate: 100-10000nm3/h
Hervorheben:

VPSA oxygen plant for medical use

,

VPSA oxygen generator 10-5000 Nm3/hr

,

10-15Kap medical oxygen generator

93%-99.5% Customized Advanced VPSA Oxygen Plant for Medical

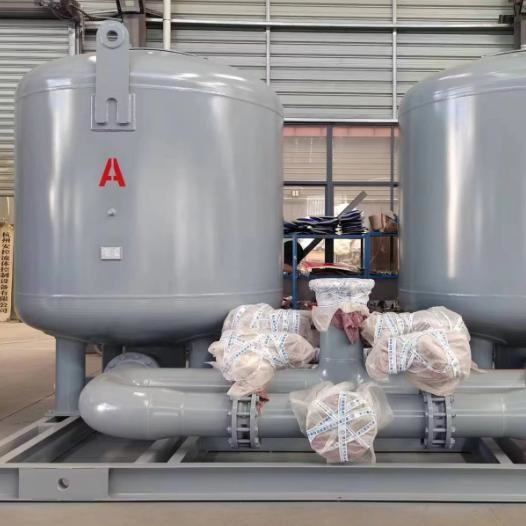

The VPSA Oxygen Generator utilizes pressure swing adsorption technology with zeolite molecular sieve as the adsorbent. The molecular sieve selectively adsorbs nitrogen while allowing oxygen to concentrate in the gas phase, achieving efficient nitrogen-oxygen separation. The system employs a dual-adsorption-tower configuration where one tower produces oxygen while the other regenerates under negative pressure. PLC-controlled pneumatic valves alternate the towers continuously to ensure stable, high-quality oxygen output.
Product Parameters
Main technical parameters of VPSA oxygen production: Purity 93%
Model specification HL-200 HL-300 HL-400 HL-500 HL-600 HL-800 HL-1000
Gas production Nm³/h 200 300 400 500 600 800 1000
Voltage 380v 380v 380v 380v 380v 10kv 10kv
Installed power KW 120 165 200 270 317 380 450
Valve gas consumption m³/min 0.5 0.7 0.9 1.1 1.4 1.6 2.0
Cooling water circulation m³/h 11 15 20 26 30 38 55
Soft water consumption m³/h 1.2 1.8 1.98 2.1 2.1 2.4 2.7
Main technical parameters of VPSA oxygen production: Purity 95%
Model specification HL-1200 HL-1600 HL-2000 HL-3000 HL-3600 HL-4500 HL-5500
Gas production Nm³/h 1200 1600 2000 3000 3600 4500 5500
Voltage 10kv 10kv 10kv 10kv 10kv 10kv 10kv
Installed power KW 565 715 1000 1250 1600 2000 2500
Valve gas consumption m³/min 2.0 2.4 3.0 3.3 4.2 5.5 6.5
Cooling water circulation m³/h 62 90 100 110 120 130 140
Soft water consumption m³/h 2.7 2.88 3.3 3.6 4.2 4.5 4.8
10-15Kap VPSA Oxygen Plant 10-5000 Nm3/Hr For Medical Use 0
10-15Kap VPSA Oxygen Plant 10-5000 Nm3/Hr For Medical Use 1
10-15Kap VPSA Oxygen Plant 10-5000 Nm3/Hr For Medical Use 2
10-15Kap VPSA Oxygen Plant 10-5000 Nm3/Hr For Medical Use 3
Technical Characteristics
  • Purification equipment uses carbon-supported catalyst requiring no hydrogen source, ensuring safe and easy operation
  • Dual-tower switching capability allows for dehydration desiccant replacement or maintenance without system shutdown
  • Premium carbon-supported catalyst extends replacement cycles while maintaining oxygen purity above 99.9995%
  • PLC-controlled automatic tower switching eliminates potential human error in manual operations
We also manufacture PSA Oxygen Generators, storage tanks, heat exchangers and related products. For inquiries about VPSA Oxygen Systems or other equipment, please contact us at info@gneeheatex.com. Our team is ready to assist with your oxygen generation needs.

Größe und Tag:

VPSA oxygen plant 300 Nm3/hr,

industrial VPSA oxygen generator,

PLC control oxygen plant
